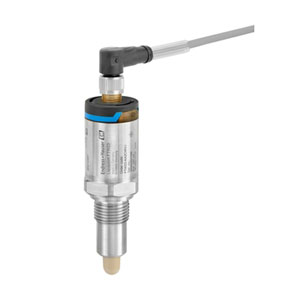

Product Introduction

For use in storage tanks, mixing vessels and pipes. For water-based liquids; Ex works for media with dielectric constant > 20, with adjustment via IO-Link for media with dielectric constant > 1.5 discernible.

• Process connections: Threads

• Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 135°C (275°F) for 1 hour

• Pressure: -1 to 16bar abs (-14.5 to 232psi)

• Hygienic certificates

Benefits

• Easy installation thanks to compact design, even in tight conditions or where access is restricted

• IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

• CIP and SIP cleanability ensured - up to protection class IP 69

• Individual adjustment to each medium not necessary

• LED display for on-site function check

Specs at a glance

• Process temperature

  Standard:
  -20 ... 100°C
  Cleaning:
  -20 ... 135°C for 1h
  -4 ... 275F for 1h

• Process pressure / max. overpressure limit

  Vacuum ... 16 bar
  Vacuum ....232 psi
