Product Introduction

Specs at a glance

• Accuracy

  Standard:
  up to 0.05 %
  Platinum:
  up to 0.025 %

• Process temperature

  Standard:
  -40°C…+125°C
  (-40°F…+257°F)

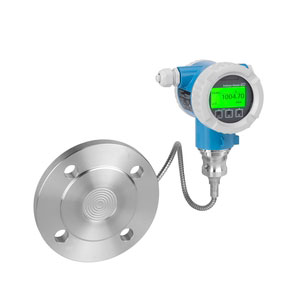

  Diaphragm seal:
  -40°C...+400°C
  (-40°F...+752°F)

• Pressure measuring range

  400 mbar...700 bar
  (1.5 psi...10,500 psi)

• Main wetted parts

  316L, AlloyC,
  Tantal, Monel,
  PTFE, Gold

• Material process membrane

  316L, AlloyC,
  Tantal, Monel,
  PTFE,
  Gold

• Measuring cell

  400 mbar...700 bar
  (6 psi...10,500 psi)
